Carefully chosen race-ready components on a fast and responsive frame put the new Falco Elite at the front of the pack for riders looking to step up their Road game. Shop the Falco Elite for performance disciplines like fast fitness training to road racing or big distance rides.

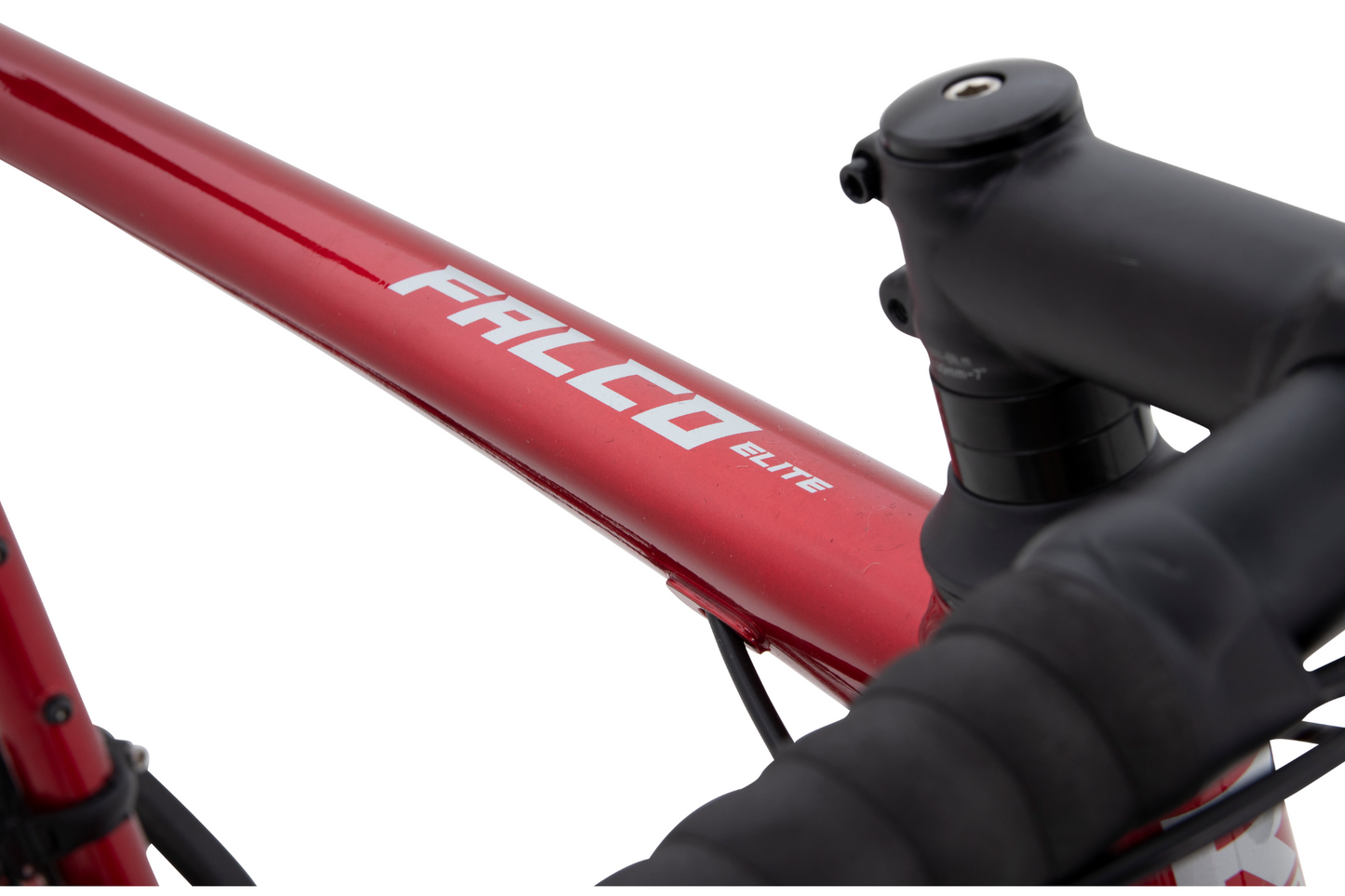

Built on a performance double-butted 6061 alloy frame and full carbon fibre fork with 12mm thru axle, the Falco Elite is optimised for speed. Designed with aggressive racing geometry and built to offer a balance of vertical compliance and lateral stiffness for excellent on-road responsiveness.
Powered by a Shimano 105/FSA 2x11 compact drivetrain and running a quality Alex AT470 racing wheelset, this road bike delivers for riders who appreciate precision and efficient energy transfer from pedals to the road surface.
Key Features:
- Aggressive race-ready geometry on a new lightweight double butted hydroformed alloy frame with integrated headset, smooth welds and internal cable routing.
- Carbon fibre fork with 12mm thru axles for stiffness, weight savings and reduced road buzz.
- 52/36 FSA semi-compact chainset with Shimano 105 R7000 11-speed shifters and derailleurs for crisp high-speed performance.
- Fast and durable Alex AT470 alloy rims, KT hubs and Maxxis M225 28c tyres to keep things moving fast.
Build
| Frame | Hydroformed 6061 alloy with integrated headset |
|---|---|
| Fork | Reid full carbon fibre 12mm thru axle |
| Handlebars | Oversize compact drop bars 420mm |
| Stem | Alloy oversize A head road stem 90mm-110mm |
| Pedals | Alloy platform |
| Saddle | Selle Royal |
| Seatpost | Alloy micro adjust 27.2 mm |
Groupset
| Cassette | Shimano 105 11-speed cassette 11-32T |
|---|---|
| Bottom Bracket | FSA external sealed bearing |
| Chain | FSA semi compact 52-36T 170mm |
| Brake Lever | Shimano 105 R7000 |
| Front Derailleur | Shimano 105 R7000 double |
| Rear Derailleur | Shimano 105 R7000 11 speed |
| Shifters | Shimano 105 R7000 STI 11-speed |
| Front Brakes | Tektro R313 dual-pivot callipers |
| Rear Brakes | Tektro R313 dual-pivot callipers |
| Chain Set | FSA semi compact 52-36T 170mm |
Wheels
| Wheelset | Alex AT470 race alloy 28H |
|---|---|
| Tyres | Maxxis M225 700x28c |
| Front Hubs | KT 28H quick release |
Extras
| Grips | Reid bar tape |
|---|
We reserve the right to modify product specifications and details without prior notification.
| Size | Extra Small (49cm) | Small (52cm) | Medium (54cm) | Large (56cm) | Extra Large (58cm) |
|---|---|---|---|---|---|
| Top Tube Length | 535 | 547 | 559 | 571 | 583 |
| Seat Tube Length | 490 | 520 | 540 | 560 | 580 |
| Head Tube Length | 120 | 120 | 140 | 160 | 185 |
| Seat Tube Angle | 74 | 73.5 | 73 | 73 | 73 |
| Head Tube Angle | 72 | 72 | 72 | 72 | 72 |
| RC Length | 415 | 415 | 415 | 415 | 415 |
| BB Drop | 80 | 80 | 77 | 77 | 77 |
| Fork Offset | 43 | 43 | 43 | 43 | 43 |
| Front Centre | 580 | 587 | 595 | 607 | 619 |
| Wheelbase | 982 | 989 | 998 | 1010 | 1022 |
Length measurements are provided in millimeters and degrees, unless specified otherwise.
| Size | Range (cm) | Range (ft & in) |
|---|---|---|
| X Small | 143 - 157 | 4'8" - 5'2" |
| Small | 157 - 165 | 5'2" - 5'5" |
| Medium | 165 - 178 | 5'5" - 5'10" |
| Large | 178 - 185 | 5'10" - 6'1" |
| X Large | 185 - 193 | 6'1" - 6'4" |
If you are outside of the size range or unsure of the best fit, give us a call and we'll help get you on the right bike.
| Size | Age | Range (cm) | Range (ft & in) |
|---|---|---|---|
| 12" (Balance) | 2 - 4 | 80 - 100 | 2'6" - 3'1" |
| 16" | 4 - 7 | 100 - 120 | 3'4" - 4'0" |
| 20" | 7 - 9 | 120 - 135 | 4'0" - 4'5" |
| 24" | 9 - 11 | 135 - 145 | 4'5" - 4'9" |
If you are outside of the size range or unsure of the right fit for you, give us a call or come in and visit your local store to talk about your best options.
Description
Carefully chosen race-ready components on a fast and responsive frame put the new Falco Elite at the front of the pack for riders looking to step up their Road game. Shop the Falco Elite for performance disciplines like fast fitness training to road racing or big distance rides.
Built on a performance double-butted 6061 alloy frame and full carbon fibre fork with 12mm thru axle, the Falco Elite is optimised for speed. Designed with aggressive racing geometry and built to offer a balance of vertical compliance and lateral stiffness for excellent on-road responsiveness.
Powered by a Shimano 105/FSA 2x11 compact drivetrain and running a quality Alex AT470 racing wheelset, this road bike delivers for riders who appreciate precision and efficient energy transfer from pedals to the road surface.
Key Features:
- Aggressive race-ready geometry on a new lightweight double butted hydroformed alloy frame with integrated headset, smooth welds and internal cable routing.
- Carbon fibre fork with 12mm thru axles for stiffness, weight savings and reduced road buzz.
- 52/36 FSA semi-compact chainset with Shimano 105 R7000 11-speed shifters and derailleurs for crisp high-speed performance.
- Fast and durable Alex AT470 alloy rims, KT hubs and Maxxis M225 28c tyres to keep things moving fast.
Specifications
Build
| Frame | Hydroformed 6061 alloy with integrated headset |
|---|---|
| Fork | Reid full carbon fibre 12mm thru axle |
| Handlebars | Oversize compact drop bars 420mm |
| Stem | Alloy oversize A head road stem 90mm-110mm |
| Pedals | Alloy platform |
| Saddle | Selle Royal |
| Seatpost | Alloy micro adjust 27.2 mm |
Groupset
| Cassette | Shimano 105 11-speed cassette 11-32T |
|---|---|
| Bottom Bracket | FSA external sealed bearing |
| Chain | FSA semi compact 52-36T 170mm |
| Brake Lever | Shimano 105 R7000 |
| Front Derailleur | Shimano 105 R7000 double |
| Rear Derailleur | Shimano 105 R7000 11 speed |
| Shifters | Shimano 105 R7000 STI 11-speed |
| Front Brakes | Tektro R313 dual-pivot callipers |
| Rear Brakes | Tektro R313 dual-pivot callipers |
| Chain Set | FSA semi compact 52-36T 170mm |
Wheels
| Wheelset | Alex AT470 race alloy 28H |
|---|---|
| Tyres | Maxxis M225 700x28c |
| Front Hubs | KT 28H quick release |
Extras
| Grips | Reid bar tape |
|---|
We reserve the right to modify product specifications and details without prior notification.
Geometry
| Size | Extra Small (49cm) | Small (52cm) | Medium (54cm) | Large (56cm) | Extra Large (58cm) |
|---|---|---|---|---|---|
| Top Tube Length | 535 | 547 | 559 | 571 | 583 |
| Seat Tube Length | 490 | 520 | 540 | 560 | 580 |
| Head Tube Length | 120 | 120 | 140 | 160 | 185 |
| Seat Tube Angle | 74 | 73.5 | 73 | 73 | 73 |
| Head Tube Angle | 72 | 72 | 72 | 72 | 72 |
| RC Length | 415 | 415 | 415 | 415 | 415 |
| BB Drop | 80 | 80 | 77 | 77 | 77 |
| Fork Offset | 43 | 43 | 43 | 43 | 43 |
| Front Centre | 580 | 587 | 595 | 607 | 619 |
| Wheelbase | 982 | 989 | 998 | 1010 | 1022 |
Length measurements are provided in millimeters and degrees, unless specified otherwise.
Size Guide
| Size | Range (cm) | Range (ft & in) |
|---|---|---|
| X Small | 143 - 157 | 4'8" - 5'2" |
| Small | 157 - 165 | 5'2" - 5'5" |
| Medium | 165 - 178 | 5'5" - 5'10" |
| Large | 178 - 185 | 5'10" - 6'1" |
| X Large | 185 - 193 | 6'1" - 6'4" |
If you are outside of the size range or unsure of the best fit, give us a call and we'll help get you on the right bike.
Our Falco Elite Road Bike includes the industry-leading Reid Warranty: lifetime on frame/rigid forks and 2 years on non-consumable parts. Shop online to enjoy a 30 Day Test Ride to guarantee you get a great deal.
